Servo Energy Saving Injection Molding Machine Overview

Servo Energy Saving Injection Molding Machine

Servo Energy Saving Injection Molding Machine SE90 Standard Appearance Customerized Colors

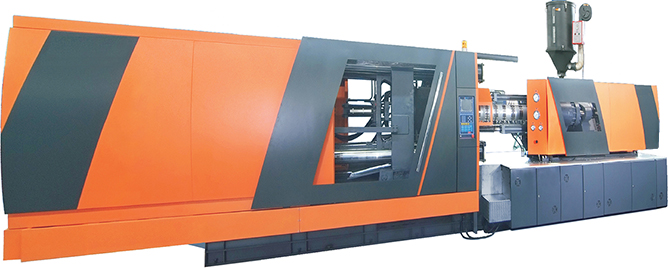

Servo Energy Saving Injection Molding Machines SE600 Customerized Appearance Orange Color

Servo Energy Saving Injection Molding Machine FT3300/PVC60000 Standard Appearance

SOUND Machinery supplies both servo energy saving injection molding machines and standard series plastic injection molding machines with similar technical platforms. While the general machine structure and main technical parameters remain comparable, the motor systems and selected core components are different, allowing customers to choose the most suitable solution for their production needs.

SE Series Injection Molding Machine Specifications

High Performance Servo Motor Internal Gear Pumps Close Loop Servo Dynamical Control System	Energy Saving Feature To adopt high performace servo motor and internal gear pumps to compose a close loop servo dynamical control system. High precision control Quick response High sensitivity Running in low noise Energy economical & environmental protection Energy saving can reach 40%~80%
Rapid Response Servo Hydraulic Machine System Against Constant Pump System Variable Pump System	Servo Motor Oil Pump Assembly - - -	Rapid response Compared with the traditional hydraulic power control system, the response speed of servo hydraulic machine is significantly faster, the quickest response time of servo hydraulic machine can be within 0.05s (0~max output), it effectively shorten the cycle time and increase the production efficiency.
Servo Hydraulic System Injection Repeatability Sophisticated Control Against Traditional Hydraulic Power Control Systems	Sophisticated control Contrast among below injection machines: Constant pump hydraulic injection machine Open-loop variable pump injection machine Closed-loop variable pump injection machine Servo hydraulic injection machine Compared with the traditional hydraulic power control system, the repeatability of servo hydraulic machie system is much higher, and can be achieved by 3‰, it can effectively ensure the stability of products and reduce the defective rate.
Servo Motor Low Energy Consumption Saving 40% to 80%	Low energy consumption The servo motor output power varies with the load change, no energy is wasted. Low energy consumption at pressure holding stage and "Zero" energy consumption at the cooling stage. This SE serial injection machine can save 40%-80% energy than conventional one.
1‰ Servo Pressure Fluctuations Measured	Servo pressure fluctuations measured of the pressure fluctuations in the percentage of the actual pressure difference (Y axis in each frame and 1‰)
Servo Hydraulic Power Control System In Contrast Table Of Accuracy Rating & Energy Saving Rating	Comparison tables of dynamic control system's precision grade and energy saving grade of hydraulic injection molding machines
Integrated Closed Loop Pressure & Flow Control By Optimized Dedicated PID Controller	Integrated closed-loop pressure, flow control Dedicated PID controller optimized. Through encoder feedback control system for precise flow Through the pressure feedback control system for precise pressure.
Servo Energy Saving Injection Molding Machines Control By DDVP Control Mode	High Quality Servo Pump System - -
Energy Saving Test 9000g Pallet Sample	An energy saving test at a top 3 pallet manufacturer in China, the following is the test results: Test product: 9000g pallet Equipment: FT-2800 vs SE-2800
Energy Saving Test Contrast Energy Saving	Time: Three shifts/day to produce pallets. Standard FT-2800 injection machine consumed 2300kwh/24hrs. SE-2800 consumed 1200kwh/24hrs, energy saving 48%, one year 300 working day, total energy saving 330,000kwh. Noise reduction effect: 3dB lower
Energy Saving Test Contrast Water Saving	Time: Three shifts/day to produce pallets. Standard FT-2800 injection machine consumed 43L/min. SE-2800 consumed 13L/min, water saving 30L, one day water saving 43,200L, one year 300 working day, total water saving 12,960,000L Noise reduction effect: 3dB lower

The SE Series servo energy saving injection molding machine is designed for manufacturers who require stable performance, lower energy consumption, quick response, and reliable molding quality. By adopting a high-performance servo motor, internal gear pump, and closed-loop servo dynamic control system, the machine can adjust output precisely according to real production demand. This helps reduce unnecessary energy waste and improves control accuracy during the molding cycle.

Compared with traditional hydraulic injection molding machines, the servo system provides several practical advantages. These include high precision control, quick response, high sensitivity, low operating noise, and improved energy efficiency. In many applications, the energy saving rate can reach 40% to 80%, depending on the product type, process settings, and operating conditions. This makes the SE series a practical choice for factories seeking better productivity and lower operating costs.

Another major benefit of the servo hydraulic system is its rapid response capability. Compared with constant pump systems and traditional variable pump systems, the response speed of a servo hydraulic injection molding machine is significantly faster. In practical production, this helps shorten the cycle time and improve overall production efficiency. For manufacturers handling large daily output, even a small reduction in cycle time can create meaningful cost savings over the long term.

The servo hydraulic machine system also offers improved molding repeatability. Compared with conventional hydraulic power control systems, the repeatability of the servo system is much higher, which helps maintain more consistent product quality and reduce defect rates. Stable pressure and flow control are especially important when producing industrial plastic parts, household products, logistics products, and other applications where dimensional stability and product consistency matter.

SOUND MACHINERY has also focused on control optimization. Through encoder feedback control for flow and pressure feedback control for precise hydraulic adjustment, the machine achieves integrated closed-loop pressure and flow control. With an optimized dedicated PID controller, the system delivers better processing stability and more accurate machine performance throughout the injection cycle.

In addition to energy efficiency, the SE series also supports practical manufacturing benefits such as reduced noise and better operational smoothness. In one pallet production energy-saving comparison, the servo machine demonstrated significantly lower power consumption than a conventional machine under the same production schedule. This kind of improvement is highly valuable for customers running large-scale or continuous production.

As one of the experienced injection molding machine manufacturers and injection molding machine suppliers in China, SOUND MACHINERY is committed to providing reliable and practical molding solutions for global customers. Our machines are widely used in applications such as household goods, industrial products, logistics products, packaging items, and other plastic components requiring stable performance and competitive cost.

If you are looking for a dependable plastic injection molding machine or comparing different options for an injection molding machine for sale, the SOUND MACHINERY SE Series offers an effective balance of performance, energy saving, and machine stability. We also provide support for machine selection, technical discussion, customized machine appearance, and optional auxiliary configurations based on customer requirements.

Whether you are concerned about Injection molding machine Price, long-term power consumption, or production consistency, SOUND MACHINERY can help you find a suitable solution for your factory.

Why Choose SOUND MACHINERY Servo Energy Saving Injection Molding Machine

• High-performance servo motor system

• Closed-loop pressure and flow control

• Fast response and stable operation

• Energy saving of 40%–80% in suitable applications

• Lower machine noise

• Wide model range for different industries

• Competitive injection molding machine price

• Professional support from an experienced injection molding machine supplier

Applications

The SOUND MACHINERY servo energy saving injection molding machine is suitable for a wide range of products, including:

• Household plastic products

• Packaging products

• Industrial plastic parts

• Logistics pallets and containers

• Consumer goods

• General engineering plastic applications

Request Injection Molding Machine Price

If you are searching for a reliable injection molding machine for sale, SOUND MACHINERY is ready to support your project.

We provide:

• Servo energy saving injection molding machines

• Plastic injection molding machines in different tonnage ranges

• Technical specification support

• Optional configurations and auxiliary equipment

• Competitive quotation and professional service

Contact SOUND MACHINERY today to get the latest injection molding machine price and model recommendation for your application.
