All-Electric Injection Molding Machines

EM Series Full-electric Injection Molding Machine

The SOUND EM Series Full-electric Injection Molding Machine is designed for stable, precise and clean production. Covering models from UN100EM to UN350EM, the series offers clamping forces from 1000 kN to 3500 kN and multiple injection unit configurations to meet different molding requirements.

The EM Series features Type B screw injection pressure up to 2200 bar, with injection pressure increased by 25%–30%. Mold adjustment precision reaches 0.1 mm, helping improve processing accuracy and production consistency. The large space between tie bars enables wider mold compatibility, while the high-rigidity machine structure supports stable mass production and consistent product quality.

With micrometer-level precision control, the EM Series is suitable for manufacturers that require precise, stable and clean molding performance. Its modular design helps reduce operating costs by more than 40%. The mechanical zero-positioning design and precise servo motor control allow quick startup after power-on. Parameter adjustment is intuitive and simple, mechanical control reduces human intervention, and production data can be presented visually.

Available Models:

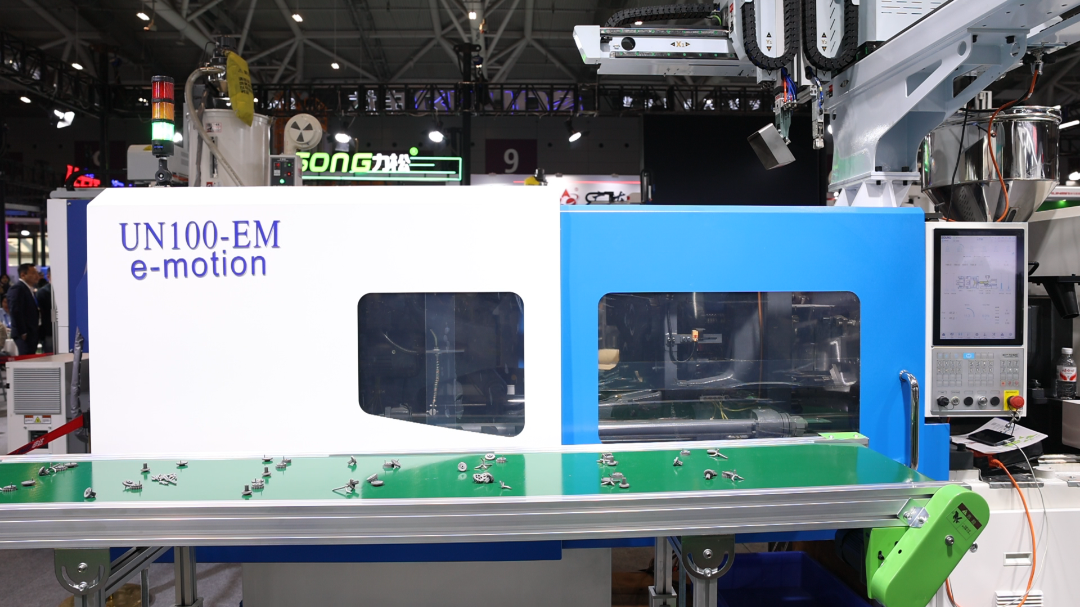

UN100EM – Clamping Force 1000 kN
UN140EM – Clamping Force 1400 kN
UN180EM – Clamping Force 1800 kN
UN230EM – Clamping Force 2300 kN
UN280EM – Clamping Force 2800 kN
UN350EM – Clamping Force 3500 kN

Precise and intelligent control system

Full-electric design for stable, precise and clean operation
Type B screw injection pressure up to 2200 bar
Injection pressure increased by 25%–30%
Mold adjustment precision of 0.1 mm
Large tie-bar spacing for wider mold compatibility
High-rigidity structure for stable production and consistent quality
Micrometer-level precision control for advanced manufacturing
Modular design for lower operating costs
Fast startup with mechanical zero-positioning design
Simple parameter adjustment and visualized production data

Technical Overview:

Clamping force range: 1000–3500 kN
Tie-bar spacing range: 460 × 460 mm to 810 × 810 mm
Platen size range: 630 × 630 mm to 1050 × 1050 mm
Opening stroke range: 360–700 mm
Mold thickness range: 150–770 mm depending on model
Screw diameter range: 28–70 mm
Machine weight range: 4.1–20 T
